QLD TMR MRTS03 · TfNSW Compliant
Independent ground anchor & soil nail testing services
Suitability and acceptance testing for civil contractors, builders, and asset owners across Queensland and New South Wales. NATA-calibrated equipment, IRATA Level 3 rope access, and field records signed off before we leave site.
Our Services
Two testing regimes, one specialist scope
We only test. That independence is what makes our records defensible when a hold point is on the line.
Suitability Testing
Sacrificial nails loaded in cycles to the ultimate geotechnical strength under TfNSW TS 02168.1 (or the load nominated by your designer in Queensland) to validate bond stress assumptions before production installation begins.
- Sacrificial (non-production) nails
- Four-cycle loading, 180 minute creep hold
- Grout/ground bond stress derivation
Acceptance Testing
Production nails loaded to 1.5 times the design working load with multi-cycle creep and deflection monitoring recorded against the governing specification's acceptance criteria.
- Production nails, distributed across the lot
- Multi-cycle creep monitoring
- Deflection recorded to 0.01 mm
Compliance & Accreditations
Calibrated, certified, accepted
Traceable equipment and current certification on every mobilisation.
NATA-Calibrated Equipment
High-precision dial gauges reading to 0.01 mm and hydraulic jacks carrying valid NATA calibration certificates, serialised on every field record.
Rope Access Capabilities

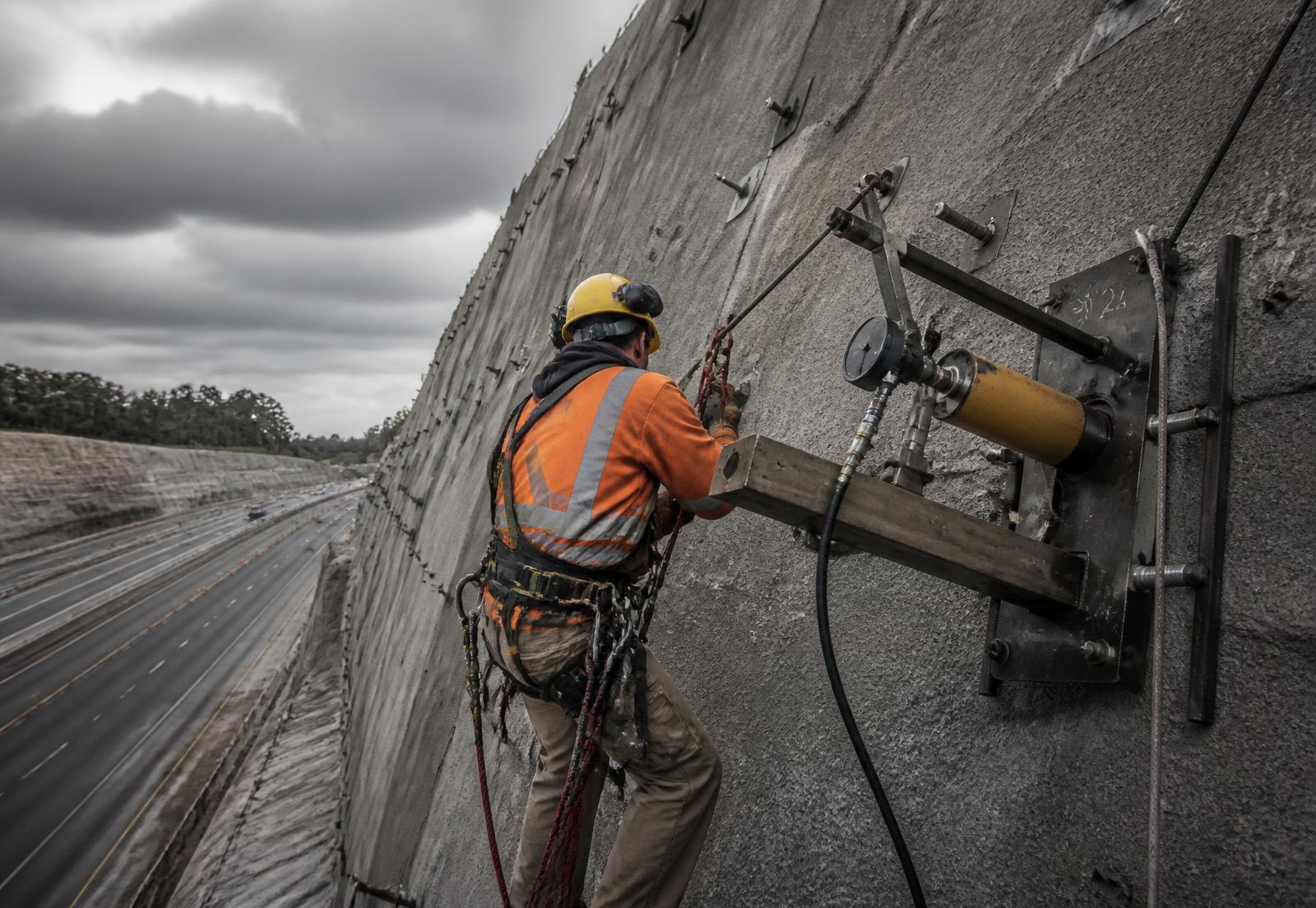

IRATA Level 3 supervised technicians for steep batter, cliff face and limited-access retaining wall testing — no scaffold or EWP delays.
Specification Compliant
Testing and reporting strictly to Queensland TMR MRTS03, Transport for NSW TS 02168.1 and TS 02163, or your custom project specification.
Governing Standards
The specifications we test to
Our testing regimes and reports are structured against the engineering and transport standards that govern ground anchor and soil nail works in Queensland and New South Wales.
TMR MRTS03 (Queensland)
Queensland Department of Transport and Main Roads Specification MRTS03 — Drainage, Retaining Structures and Protective Coatings. Clause 49 governs soil nailing, including acceptance testing of production nails to 1.5 times the design working load. MRTS03 is the reference specification for most QLD civil and roadworks contracts.
TfNSW Geotechnical Specifications
Transport for NSW specifications TS 02168.1 (soil nailing — suitability and acceptance testing) and TS 02163 (post-tensioned ground anchors), including multi-cycle loading, creep monitoring and elastic extension verification requirements.
AS 4678 & BS 8081
Australian Standard AS 4678 (Earth-retaining structures) and BS 8081 (Code of practice for ground anchorages) underpin anchor design and testing practice nationally. Where a project specification nominates these standards, our test procedures and reporting follow them directly.
Service Areas
Mobilisation across Queensland and New South Wales
Based in Queensland, we mobilise testing crews and calibrated equipment to civil, building and infrastructure projects across both states.
Queensland
Brisbane, Gold Coast, Sunshine Coast, Toowoomba and regional Queensland — including road, rail and resources infrastructure projects under TMR MRTS03.
New South Wales
Sydney, Newcastle, Wollongong and regional NSW — transport and civil infrastructure projects under TfNSW geotechnical specifications.
Planning Tool
Size your acceptance testing scope
Enter your production nail count and we'll apply the MRTS03 Table 49.5 rates or the TfNSW TS 02168.1 percentages, rounded up.
Test Frequency Calculator
MRTS03 Table 49.5 — acceptance (pull-out) testing
Up to 50 nails: 3 tests · 51–100 nails: 6 tests · Over 100 nails: 6%
Required acceptance tests
6
51 to 100 nails — minimum 6 pull-out tests
Suitability tests
Not specified
MRTS03 prescribes a single acceptance (pull-out) regime at 1.5 × working load. Any pre-construction sacrificial testing is set by the designer or Superintendent.
Program-aligned mobilisation
Planned mobilisation across Queensland and New South Wales, scheduled around your hold points and construction sequence.
Same-day field records
Signed load/displacement records issued before we demobilise from site.
Audit-ready reporting
Formatted to the governing spec with calibration certificates appended.
Have a wall going up next month?
Send us the shoring drawings and the spec. You'll have a priced testing scope with mobilisation windows inside one business day.
Request a Testing Quote
